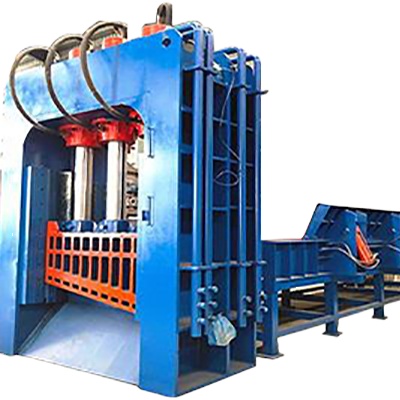

Working principle of gantry shearing machine

workflow

Automatic feeding: After the material is grabbed into the automatic feeding box, it is automatically conveyed to the cutting edge by the conveyor belt.

Feeding regulation: The feeding speed is controlled by a speed regulating motor to ensure precise cutting.

Side squeezing function: For large waste materials that cannot be directly cut through the cutting edge, the gantry shearing machine is equipped with side squeezing oil cylinders on both sides, which can squeeze and shrink the waste materials, allowing them to pass through the cutting edge and then be transported by the conveyor to the cutting site for cutting.

Scope of application and advantages

The gantry shear machine is suitable for cutting various metal materials, including steel plates, channel steel, I-beams, steel bars and other profiles. It is also suitable for machining materials, loose heavy waste, lightweight waste steel, automotive shells, etc. Its advantages include:

Efficient and energy-saving: Adopting constant power variable and differential fast technology, saving about 30% of energy consumption.

High degree of automation: equipped with an automatic control touch screen control panel to achieve integrated automation control.

Stable and reliable structure: Adopting a sturdy open structure with integral welding to ensure the stability of the body, while providing a convenient operating system.

Energy saving and environmental protection: The hydraulic system is built into the frame, and the low oil pump displacement and low motor power make the equipment run energy-saving and environmentally friendly
